Measurement tools snapping enabled by default

To improve the accuracy and efficiency of drawing measurements, the option to enable snapping for measurement tools is now enabled by default in the document viewer.

Details

Measurement tools automatically snap to drawing points and edges, reducing the need for manual adjustments when creating measurements.

How it works

Open a drawing in the New Documentation Viewer and select Measure.

Select any of the tools and use snapping as needed.

Add New Scale includes information .

Select

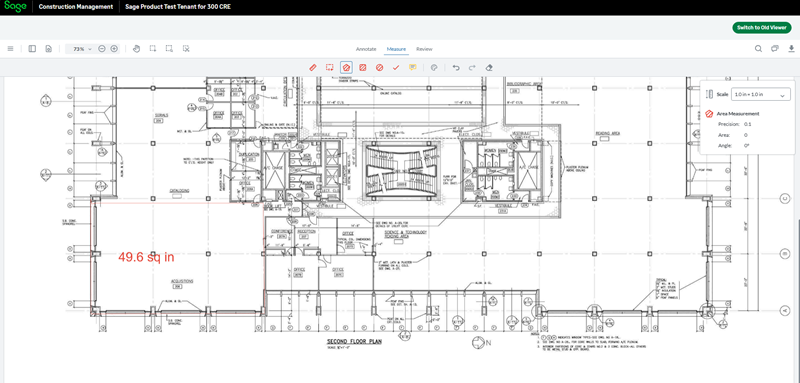

An example of using the snap tool to measure.
